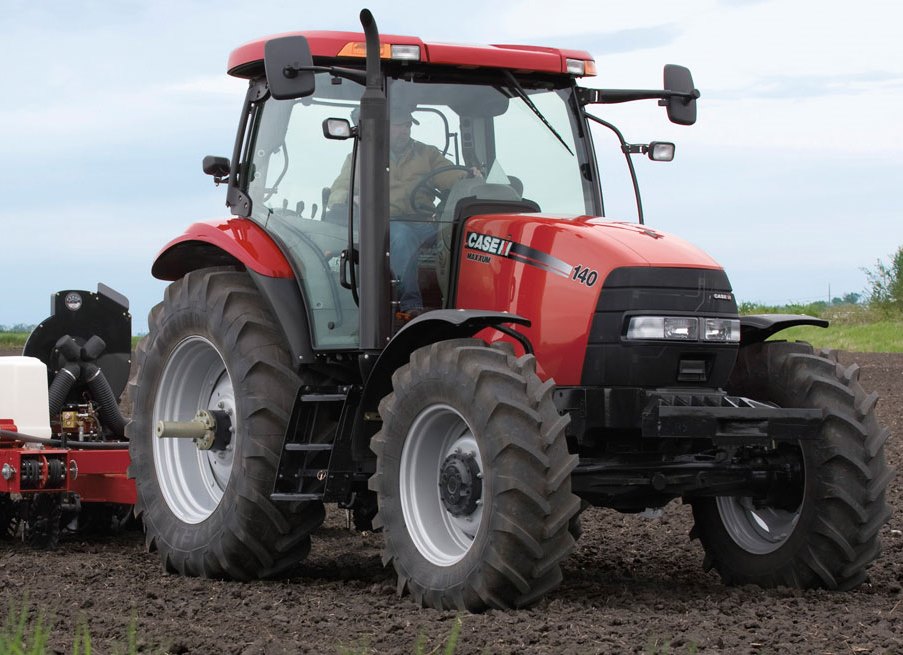

Case IH Maxxum 140 Tractor Specs

Classification - Row Crop tractor

Case IH 140 Maxxum Engine Specifications

Engine Model - Case IH FPT 6.7 Liter
Engine Power, Rated, hp (kW) - 140 (103)
Maximum Engine Power, hp (kW) - 176 (129)
Rated Engine Speed, rpm - 2200
Power Boost, hp (kW) - 36 (26)
Fuel Tank, gal (L) - 63.4 (240)
Cylinders - 6
Displacement, cu in (L) - 411 (6.7)
Engine Bore, in (mm) - 4.095 (104)
Engine Stroke, in (mm) - 5.20 (132)
Block Design, Replaceable Liners - Parent bore
Aspiration, Turbocharged or Naturally Aspirated - Turbocharged w/ Air-to-Air Intercooler
Fuel System Description - High Pressure Common Rail
Fuel System Control - Electronic
Fuel Injection to combustion chamber - Direct
Emission Level - Tier 4A
Selective Catalytic Reduction (SCR) w/Diesel Exhaust Fluid (DEF) - SCR with DEF
Exhaust Pipe - Vertical
Cooling System Fan Drive Type - Viscous
Electrical System Rating, Volts - 12
Alternator Rating, Amps - 120 std; 150 opt

Case Maxxum 140 Tractor Transmission

Description - 16F / 16R Semi Powershift
Transmission Type - Semi Powershift
Forward / Reverse Speeds - 16F / 16R
Maximum Speed Forward, mph (kph) - 25 (40)
Creeper Range - Optional hydraulic controlled
Shuttle (Forward-Reverse) - Standard

Optional Transmission

Description - 17F / 16R Semi Powershift (25 mph)
Transmission Type - Semi Powershift
Forward / Reverse Speeds - 17F /16R
Description - 17F / 16R Semi Powershift (30 mph)
Transmission Type - Semi Powershift
Forward / Reverse Speeds - 17F /16R

Case 140 Maxxum PTO

PTO Horsepower, hp (kW) - 120 (90)
Power Take Off Speeds, rpm - 540 / 1000
PTO Type - Independent

Wheel

Drive Wheels - 4WD
Steering - Front Steer

Rear Axle

Final Drive - Planetary / Inboard
Axle Output End - Flange std; Bar opt.
Axle Bar Diameter, in (mm) - 3.625 (92)
Suspended Front Axle - Optional

Brakes

Brake Type - Wet disc

Maxxum 140 Hydraulic System

Hydraulic System Type - Open center std; PFC opt.
Main Hydraulic Pump Type - Fixed displacement
Standard Pump Flow, gpm (Lpm) - 18.7 (70)
Optional Pump Flow, gpm (Lpm) - 26.4 (100)
Standard Remote Valves - 2 std; 3 or 4 opt

Case IH Maxxum 140 Tractor 3-Point Hitch

3-Point Hitch Category - Category 2
Optional Hitch Category - Category 2 / 3N
Draft Sensing or Lift Control - Electronic, lower link pins
Draft Link Ends Adjustable - Yes
Standard Lift Capacity 24 Inches behind pin, lb (kg) - 6,200 (2812) OECD
Optional Lift Capacity 24 Inches behind pin, lb (kg) - 6,900 (3130) OECD

Drawbar

Drawbar Description - Category 3, Swinging

Wheelbase

Wheelbase, 4WD, in (mm) - 103 (2627)

Tire Size

Front Tire Size Width, 4WD - 14.9 R28 R1W
Rear Tire Size Width - 18.4 R38 R1W
