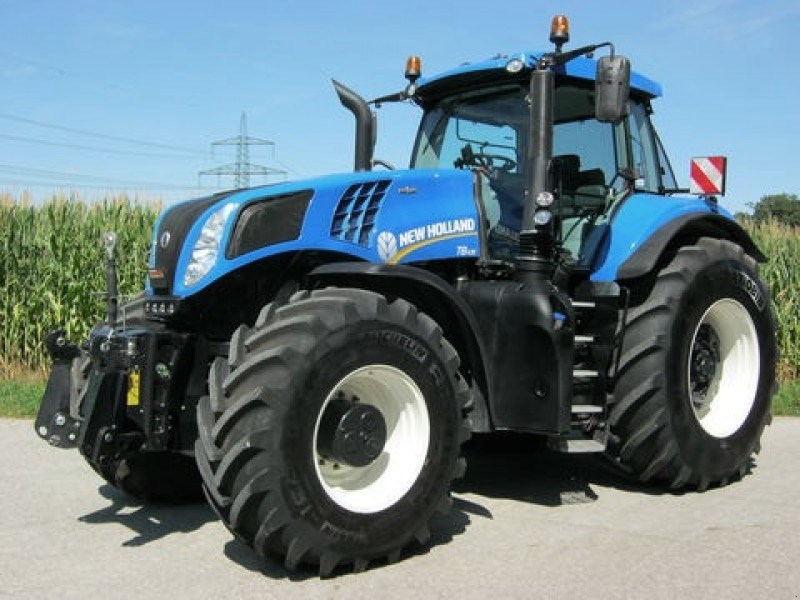

New Holland T8.435 Tier 4B Genesis Tractor Specs

Classification - Row Crop tractor

New Holland T8.435 Engine Specifications

Engine Make - New Holland FPT
Engine Model - Cursor 9L
Number of Cylinders - 6
Advertised Engine Power, Rated, hp (kW) - 380 (279)
Maximum Engine Power, hp (kW) - 435 (320)
Rated Engine Speed, rpm - 2000
Power Boost, hp (kW) - 55 (41)
Fuel Tank capacity, gal (L) - 163 (617)
Diesel Exhaust Fluid (DEF) tank capacity, gal (L) - 26 (99)
Displacement, cu in (L) - 531 (8.7)
Engine Bore, in (mm) - 4.61 (117)
Engine Stroke, in (mm) - 5.31 (135)
Block Design, Replaceable Liners - Wet liners
Aspiration, Turbocharged or Naturally Aspirated - Turbocharged, air-to-air aftercooled
Fuel System Description - High Pressure Common Rail
Fuel System Control, Electronic or Mechanical - Electronic
Fuel Injection to combustion chamber - Direct
Emission Level, US EPA Tier - Tier 4B / Final
Selective Catalytic Reduction (SCR) w/Diesel Exhaust Fluid (DEF) - HI-eSCR w/ DEF
Cleanup Catalyst (CUC) - CUC standard
Diesel Oxidation Catalyst (DOC) - DOC standard
Exhaust Pipe, Vertical stack or Horizontal - Vertical stack
Cooling System Fan Drive Type - BorgWarner Visctronic
Electrical System Rating, Volts - 12
Alternator Rating, Amps - 200

PTO Performance

PTO Horsepower, Basic / Optional Transmission, hp (kW) - 315 (235)
PTO Speeds, rpm - 1000 std; 540 / 1000 opt
Power Take Off operational Type - Independent

NH T8.435 Basic Transmission Configuration

Manufacturer's Description - Auto Command CVT
Transmission Type - Continuously variable (CVT)
Number of Forward / Reverse Speeds - Infinite, 4 ranges
Maximum Speed Forward, mph (kph) - 25 or 31 (40 or 50)
Creeper Range Available - Standard in CVT
Shuttle (Forward-Reverse) Available - Yes

Optional Transmission 1

Manufacturer's Description - Auto Command CVT, 31 mph/50 kph
Transmission Type - Continuously variable (CVT)
Number of Forward / Reverse Speeds - Infinite, 4 ranges

Wheel Configuration

Drive Wheels - 4WD
Steering Configuration - Front Steer
Steering System - Hydrostatic

Rear Axle Assembly

Final Drive Location and Description - Inboard Planetary
Axle Output End, Flange or Bar - Bar
Axle Bar Diameter, in (mm) - 5.0 (127)

Front Axle

Suspended Front Axle Available - Optional

Brakes

Service Brake Type - Wet disc

New Holland T8435 Tractor Hydraulic System

Hydraulic System Type - Closed Center Load Sensing
Main Hydraulic Pump Type - Variable Displacement
Implement Pump Flow, gpm (Lpm) - 44 (166)
Optional Pump Flow, gpm (Lpm) - 75 (282)
Number of Standard Remote Valves - 4 std; 5th and 6th opt.

NH T8.435 Tier 4B 3-Point Hitch Features

3-Point Hitch Category - Category 3/4N, long links
Optional Hitch Category - No option
Draft Sensing or Lift Control - Electronic, lower link
Draft Link Ends Telescopic - Adjustable quick coupler
Standard Lift Capacity 24 Inches behind pin, lb (kg) - 19,900 (9026) long links
Optional Lift Capacity 24 Inches behind pin, lb (kg) - No option

Drawbar

Drawbar Description - Category 4, Swinging

Wheelbase

Wheelbase, MFD/4WD, in (mm) - 140 (3556)

New Holland T8435 Dimensions

Length, MFD/4WD, incl. Hitch/Drawbar, in (mm) - 255 (6477)
Height to Top of Cab, in (mm) - 133 (3378)
Height to Top of ROPS raised, in (mm) - No open ROPS

Width w/Tires

Overall Width, with standard wheels, in (mm) - 120 (3048) bar axle ends

Weight w/Tires

Weight, MFD/4WD w/Cab, without ballast, lb (kg) - 31,190 (14148)
Weight, Total allowable, w/maximum ballast, lb (kg) - 38,580 (17500)

Tire Size

Front Tire Size Width, MFD/4WD - 420/85 R34, R1W
Rear Tire Size Width - 480/80 R50, R1W Duals
