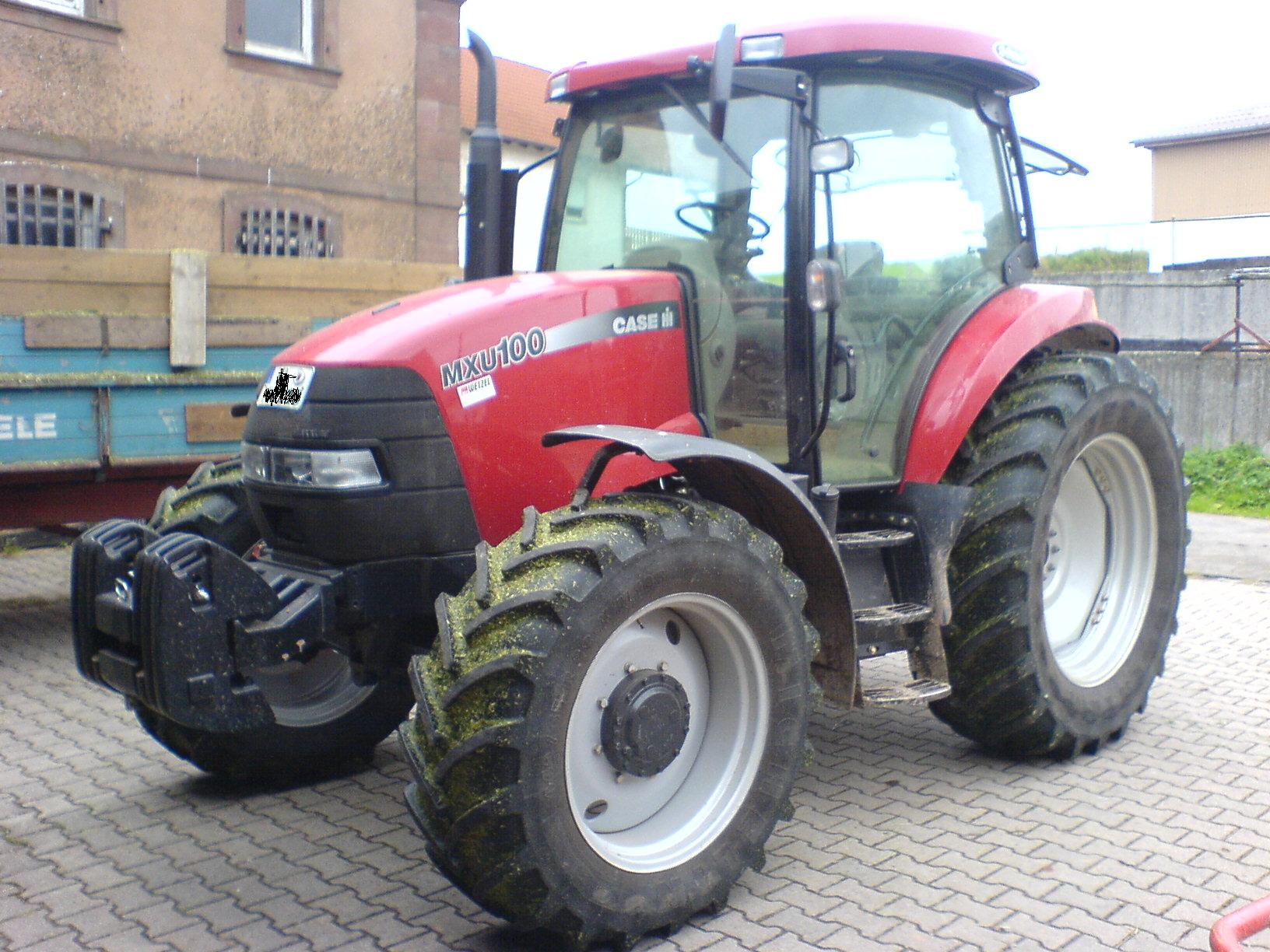

Case IH MXU 100 Tractor Specs

Classification - Utility tractor

Case IH MXU 100 Engine Specifications

Gross Engine Horsepower - 100 hp (74.6 kW)
PTO Horsepower - 80 hp (59.7 kW)
Rated Speed (RPM) - 2200
Number of Cylinders - 4
Aspiration - Turbocharged
Displacement - 273 cu.in. (4.5 L)
Air Cleaner - Dry type with dual elements
Fan - Viscous
Starting Aid - Grid heater

Fuel System

Fuel Injection - Direct, w/electronic governor
Filter - Full flow vertical mount spin-on
Fuel Sedimentation Device with Sensor - Standard
Injection Pump - Bosch
Injectors - 6 hole

MXU 100 Tractor Transmission

Standard - 24 x 24 with 2 speed Powershift
Optional - 16 x16 Semi-Powershift
Differential Lock - Electro-hydraulic
Brakes - Hydraulic wet disc

CaseIH MXU100 Hydraulic System and Hitch

Hydraulic System - Fixed displacement or PFC
Steering and Services Pump - 10.5 gpm (40 L/min)
Implement Pump – fix disp./PFC - 19.8/26.5 gpm (75/100 L/min)
Total Tractor Flow – fix disp./PFC - 30.3/37 gpm (115/140 L/min)
Max. System Pressure – fix disp./PFC - 2,974/3,118 psi (205/215 bar)
Rear Remote Valves - 2 std, 3 and 4 opt, closed center valves
Optional Mid-mount Loader Valve - Yes
Steering Type - Hydrostatic
Hitch Category: ROPS – 2; CAB – 2/3N
Sensing Type - Mechanical lower link / Electronic Draft Control (Cab only)
Hitch Lift Capacity (SAE) max: ROPS – 9,285 lb. (4212 kg); CAB – 9,620 lb. (4364 kg)

Case IH MXU 100 Power Take-Off

PTO Type - Multi-plate wet clutch
Power Take-Off Engagement - Electro-Hydraulic
PTO Speeds - 540/1000

Capacities

Fuel Capacity - 46.7 gal. (177 L)
Alternator Amps: ROPS –70; CAB – 120
Battery Capacity (Cold Cranking Amps) - 1300 CCA

Estimated Weight

2WD: ROPS – 9,060 lb. (4110 kg); CAN – 10,008 lb. (4540 kg)
MFD: ROPS – 9,435 lb. (4280 kg); CAB – 10,383 lb. (4710 kg)

Approximate Dimensions

Height to top of ROPS (up position)/Cab - 112.4 in. (2855 mm)
Height to Exhaust - 113.2 in. (2875 mm)
Wheelbase - 2WD: 93.3 in. (2370 mm) / MFD: 94.9 in. (2412 mm)
