Kawasaki FC420V Carburetor
Kawasaki FC420V - Carburetor adjustment

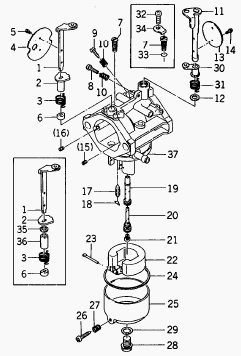

Kawasaki FC420V carburetor parts:
1. Choke shaft, 2. Collar, 3. Spring, 4. Choke valve, 5. Screw, 6. Ring,
7. Pilot jet, 8. Screw, 9. Pilot screw, 10. Spring, 11. Throttle shaft,
12. Seal, 13. Throttle valve, 14. Screw, 15. Main air jet, 16. Pilot air
jet, 17. Needle valve, 18. Clip, 19. Main nozzle, 20. Bleed pipe, 21.
Main jet, 22. Float, 23. Float pin, 24. Gasket, 25. Float chamber, 26.
Drain screw, 27. Spring, 28. Bolt, 29. Washer, 30. Collar, 31. Spring,
32. Screw, 33. O-ring, 34. Plate, 35. Seal, 36. Collar, 37. Carburetor
body
Kawasaki FC420V carburetor is float type with adjustable pilot screw
(idle mixture), fixed main jet, and float chamber drain screw.
Float adjustment
- Do not strike float pin to remove or install it, to avoid breakage of
pin holder.
- To remove float pin, pull the transformed end with pliers.
- To install float pin, push float pin transformed end until the other
end flushes with pin holder outer surface.
- Do not push down float or needle valve when checking parallelism.
- Check float angle and correct it as follows.
- Place carburetor upside down and check whether float surface (A) is
parallel with carb body (B) when float tang (C) just begins to come in
contact with point of needle valve (F). If not parallel, adjust float
surface angle bending tang (C) with needle-nose pliers.
Slow idle speed adjustment
- Turn carb pilot screw (B) in until it just seats and then back out
1-1/2 turns.
- Start and warm up engine without load.
- Move throttle lever on dash to SLOW position.
- Adjust slow idle speed to specified rpm by moving throttle stop screw
(A).
- Adjust pilot screw (B) until engine idles at maximum speed and then
turn pilot screw out additional 1/4 turn.
- Re-adjust slow idle speed, to specified rpm.
Fast idle speed adjustment
- Air cleaner must be installed to engine before starting.
- Start and warm up engine without load. Loosen two control plate bolts
(I).
- Align hole (B) of speed control lever (C) with hole (D) of control
plate (E) and insert 6 mm (0.24 in.) dia. pin or 6 mm bolt through two
holes.
- Make sure choke valve is fully opened.
- Adjust fast idle speed for specified rpm by moving control plate (E).
- Tighten two bolts (I) securely in a manner to avoid changing specified
speed.
- Stop engine, remove 6 mm pin, and set throttle lever on dash in CHOKE
position.
- Make sure carb choke valve is closed completely.
Kawasaki FC420V carburetor removal
Before removing carburetor from engine, drain fuel in float chamber to
suitable container loosening drain screw (A).
Float chamber removal
Before removing float chamber, rotate float chamber clockwise and
counterclockwise for 1/6 turns 2 or 3 times, pushing float chamber to
carb body to release sticking of float chamber and rubber gasket.
Kawasaki FC420V carburetor cleaning and check
- Do not clean jet orifices with hard object.
- Dip carb components except non-metaric parts such as gasket into carb
cleaner until dirt is removed and rinse them with solvent.
- Rinse carb aluminum components in hot water to neutralize corrosive
action of cleaner, if so instructed by the manufacturer.
- Dry components with compressed air. Make sure all orifices and
passages are free from dirt or foreign object.
- Do not use rags or paper to dry components to avoid plugging orifices
by lint.
- Check diaphragm for crack, tear, or pin hole. If defect is found,
replace it.
