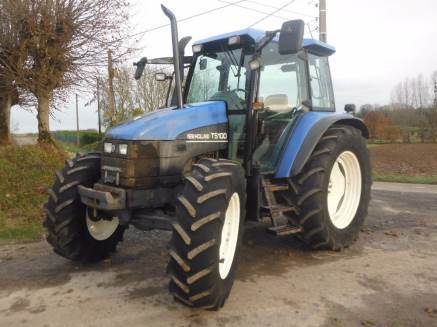

New Holland TS100 Tractor Specs

NH TS100A Engine Specifications

Gross Engine Horsepower (kW) - 100 (74.6)
PTO Horsepower (kW) - 80 (59.7)
Rated Speed, RPM - 2200
Number of Cylinders - 4
Aspiration - Turbocharged and intercooled
Engine Displacement, cu. in. (L) - 273 (4.5)
Air Cleaner - Dry type/Dual Element
Fan - Viscous
Starting Aid - Grid Heater
Fuel Injection - Direct w/mechanical governor
Injection Pump - Bosch
Injectors - 6 hole

TS100 A NH PTO

PTO Type - Multi-Plate / Wet Clutch
PTO Engagement - Electro-Hydraulic
Power Take Off Speeds - 540/1000

New Holland TS 100 A Transmission

Standard Transmission - 12x12 Syncro-Command w/ Mechanical Shuttle
Optional Transmission - 24x24 Dual-Command w/ 2 sp.
16 x 16 Electro-Shift w/ 4 sp. Power shift with electro-hydraulic clutchless shuttle
16 X 16 Autoshift with electro-hydraulic clutchless shuttle
Differential Lock - Electro-Hydraulic
Brakes - Hydraulic Wet Disc

New Holland TS 100 Hydraulic System and Hitch

Hydraulic System - Open Center or CCLS
Steering and Service Pump, gpm (lpm) - 10.5 (40)
Implement Pump 12X12, 24X24, gpm (lpm) - 19.8 (75)
Total Tractor Flow, gpm (lpm) - 30.3 (115)
Implement Pump 24 X 24 W/ EDC, gpm (lpm) - 26.5 (100)
Implement Pump 16X16, gpm (lpm) - 26.5 (100)
Total Tractor Flow, gpm (lpm) - 37 (140)
Max. System Pressure-Fix Disp./PFC-psi (bar) - 2,974/3,118 (205/215)
Rear Remote Valves - 2 standard; 3 and 4 optional closed center valves
Optional Mid Mount Loader Valve - Yes
Steering Type - Hydrostatic
Hitch Category - 2
Hitch Category w/ EDC - 2/3
Sensing Type - Mechanical lower link
Optional Sensing Type - Electronic Draft Control
Hitch Lift Capacity (SAE) max., lbs (kg) - 8250 (3742)
Optional Lift Capacity, lbs (kg) - 9,285 (4212)

Rear Axle and Wheelbase

Standard Equipment Flange - Flange
Optional, in. (cm) - 98 (249) Bar
Wheelbase 2WD, in. (mm) - 93.3 (2370)
Wheelbase FWD, in. (mm) - 94.9 (2412)

TS100A Dimensions and Capacities

Height to top of ROPS (up position)/cab), in (mm) - 112.4 (2855)
Height to Exhaust (ROPS only), in (mm) - 113.2 (2875)
Height to top of Suspended Cab, in (mm) - 115.0 (2921)
Fuel Capacity, gal (l): Standard - 47.5 (180) / Supersteer - 41.2 (156)
Alternator Amps. - 70
Battery Capacity (Cold Cranking Amps) - 1300 CCA
Estimated Weight 2WD, lbs (kg) - 9,060 lb. (4110) / 10,008 lb. (4540)
Estimated Weight FWD, lbs (kg) - 9,435 lb. (4280) / 10,383 lb. (4710)
