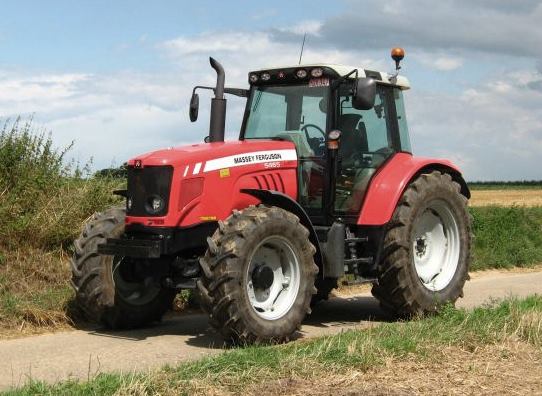

Massey Ferguson 5465 Tractor Specs

Classification - Utility tractor

MF 5465 Engine Specifications

Engine Model - Perkins 1106D-E66TA
Engine Power, Rated, hp (kW) - 120 (89.5)
Maximum Engine Power, hp (kW) - 130 (97)
Engine Speed, rpm - 2200
Power Boost, hp (kW) - 10 (7.5)
Fuel Tank, gal (L) - 38.0 (145) Std / 50.0 (189.3) w/Opt Tank
Cylinders - 6
Displacement, cu in (L) - 403 (6.6)
Engine Bore, in (mm) - 4.134 (105)
Engine Stroke, in (mm) - 5.0 (127)
Block Design, Replaceable Liners - Parent bore block
Aspiration, Turbocharged or Naturally Aspirated - Turbocharged, air-to-air aftercooled
Fuel System Type - High Pressure Common Rail
Fuel System Control - Electronic
Fuel Injection to combustion chamber - Direct
Emission Level - Tier 3
Exhaust Pipe - Vertical
Cooling System Fan Drive Type - Belt
Electrical System Rating, Volts - 12
Alternator Rating, Amps - 120

Massey Ferguson 5465 Transmission

Description - 16 x 16 Dyna-4
Transmission Type - Power Shuttle
Forward / Reverse Speeds - 16F / 16R
Creeper Range - Yes
Shuttle (Forward-Reverse) - Yes

MF5465 Tractor PTO

PTO Horsepower, hp (kW) - 100 (75)
PTO Speeds, rpm - 540 / 1000
Power Take Off Type - Independent

Wheels and Steering

Drive Wheels - 2WD / 4WD
Steering - Front Steering
Type: Hydrostatic, fixed or tiltable telescopic steering column, one double acting central ram.
Front tyre dimensions - 16.9R28
Wheel track (m) - 1.75
Inner angle - 55°
Outer tyre radius Without braking (m) - 4.52

MF 5465 Rear Axle

Final Drive - Planetary
Axle Output End - Flange
Axle Bar Diameter, in (mm) - No bar axle

Brakes

Brake Type - Wet disc
Oil immersed single disc per wheel, outside diameter - 343 mm
Inside diameter of lining - 274 mm
Operation - Hydraulic, from two master cylinders, automatic adjustment
Parking brake - Operates on the rear axle bevel gear
Trailer brake - According to model by a hydraulic spool valve

Massey Ferguson 5465 Tractor Hydraulic System

Hydraulic System Type - Open Center / Closed Center Cab Only
Main Hydraulic Pump Type - Gear
Standard Pump Flow, gpm (Lpm) - 15.0 (57.0)
Optional Pump Flow, gpm (Lpm) - 26 (100) or 29 (110) Cab only
Standard Remote Valves - 2

3-Point Hitch Features

3-Point Hitch - Category 2
Draft Sensing or Lift Control - Lower link
Draft Link Ends Adjustable - Standard
Standard Lift Capacity 24 Inches behind pin, lb (kg) - 9,189 (4168)

Drawbar

Drawbar Description - Swinging extendable

MF5465 Electrical System

Voltage: 12 volts negative ground.
Batteries: 1 or 2 maintenance free batteries.
Alternator: 80/120 Amp. according to model
Safe start-up: Operated by the clutch pedal.
Lights: European code 40/45 W
Sidelights: 5 W
Direction indicators: 21 W
Number plate light: 10 W
Work headlights: 55 W - H3
Instrument panel lighting and indicator lights: 3 W - 2 W - 1.2 W
Roof light: 10 W

Wheelbase

4WD, in (mm) - 109.0 (2779)
