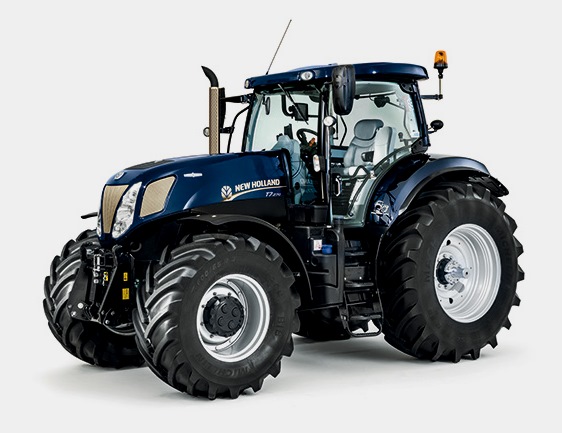

New Holland T7.270 Tractor Specs

Classification - Row Crop tractor

Engine Performance

Advertised Engine Power, Rated, hp (kW) - 240 (177)
Maximum Engine Power, hp (kW) - 270 (199)
Rated Engine Speed, rpm - 2200
Power Boost, hp (kW) - 30 (22)
Fuel Tank capacity, gal (L) - 104 (395)
Diesel Exhaust Fluid (DEF) tank capacity, gal (L) - 13 (48)

NH T7.270 Basic Engine Specifications

Engine Make - New Holland FPT
Engine Model - NEF 6.7 L
Number of Cylinders - 6
Displacement, cu in (L) - 411 (6.7)
Engine Bore, in (mm) - 4.095 (104)
Engine Stroke, in (mm) - 5.20 (132)
Block Design, Replaceable Liners - Parent bore block
Aspiration, Turbocharged or Naturally Aspirated - Turbocharged, air-to-air aftercooled

Fuel System

Fuel System Description - High Pressure Common Rail
Fuel System Control, Electronic or Mechanical - Electronic
Fuel Injection to combustion chamber - Direct

Emission and Exhaust Treatment

Emission Level, US EPA Tier - Tier 4B / Final
Selective Catalytic Reduction (SCR) w/Diesel Exhaust Fluid (DEF) - HI-eSCR w/ DEF
Cleanup Catalyst (CUC) - CUC standard
Diesel Oxidation Catalyst (DOC) - DOC standard
Exhaust Pipe, Vertical stack or Horizontal - Vertical stack

Cooling and Electrical System

Cooling Fan Drive Type - Viscous
System Rating, Volts - 12
Alternator Rating, Amps - 150 Std; 200 opt

New Holland T7270 Tractor Basic Transmission Configuration

Manufacturer's Description - Auto Command CVT
Transmission Type - Continuously Variable (CVT)
Number of Forward / Reverse Speeds - Infinite, 4 ranges
Maximum Speed Forward, mph (kph) - 25 or 31 (40 or 50)
Creeper Range Available - Yes, CVT
Shuttle (Forward-Reverse) Available - Yes

Optional Transmission 1

Manufacturer's Description - Auto Command CVT, 31 mph / 50 kph
Transmission Type - Continuously Variable, CVT
Number of Forward / Reverse Speeds - Infinite, 4 ranges

New Holland T7.270 Tractor PTO

PTO Horsepower, Basic / Optional Transmission, hp (kW) - 210 (157)
Power Take Off Speeds, rpm - 540 / 540E / 1000 / 1000E
PTO operational Type - Independent

Wheels Configuration

Drive - 4WD
Steering Configuration - Front Steer std; SuperSteer opt

Rear Axle Assembly

Final Drive Location and Description - Inboard Planetary
Axle Output End, Flange or Bar - Flange std; Bar opt.
Axle Bar Diameter, in (mm) - 4.125 (105)

Front Axle

Suspended Front Axle Available - Optional

Brakes

Service Brake Type - Wet disc, ABS available

New Holland T7270 Hydraulic System

Hydraulic System Type - Closed Center Load Sensing
Main Hydraulic Pump Type - Variable Displacement Piston Pump
Implement Pump Flow, gpm (Lpm) - 32 (120)
Optional Pump Flow, gpm (Lpm) - 39.6 (150)
Number of Standard Remote Valves - 3 std; 4th and 5th opt.

NH T7.270 Tractor 3-Point Hitch Features

3-Point Hitch Category - Category 2 / 3
Optional Hitch Category - No option
Draft Sensing or Lift Control - Electronic Draft Control
Draft Link Ends Telescopic - Yes

3-Point Hitch Lift Capacity

Standard Lift Capacity 24 Inches behind pin, lb (kg) - 9,450 (4286)
Optional Lift Capacity 24 Inches behind pin, lb (kg) - 10,746 (4874)
Standard Lift Capacity at lift pin, lb (kg) - 12,787 (5800)
Optional Lift Capacity at lift pin, lb (kg) - 15,873 (7200)

Drawbar

Drawbar Description - Extendable, swinging

Wheelbase

Wheelbase, MFD/4WD, in (mm) - 113.5 (2884) std; 117.2 (2977) SuperSteer

New Holland T-7270 Dimensions

Length, MFD/4WD, incl. Hitch/Drawbar, in (mm) - 227.3 (5773)
Height to Top of Cab, in (mm) - 122.6 (3115)
Overall Width, with standard wheels, in (mm) - 97.2 (2470) minimum

Weight w/Tires

Weight, MFD/4WD w/Cab, without ballast, lb (kg) - 15,322 (6950) std; 16,094 (7300) susp. fr. axle
Weight, Total allowable, w/maximum ballast, lb (kg) - 28,660 (13000)

Tire Size

Front Tire Size Width, MFD/4WD - 380/85 R34, R1W
Rear Tire Size Width - 480/80 R46, R1W
