ASV RC-100 Track Loader Maintenance Data

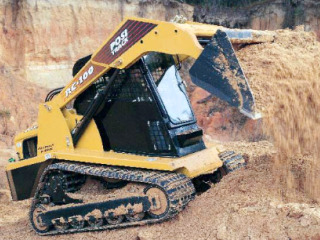

The ASV Posi-Track RC-100 compact track loader is powered by 269 cu.in (4.4L) Perkins 1104C-44T 4-stroke 4-cylinder direct injection turbocharged diesel engine with a rated power of 99.5 hp (74 kW) at 2300 rpm. The ASV RC100 is equipped with a 2-speed hydro transmission, radial-lift loader boom, 18.7" (475 mm) rubber tracks, and elevated track drive sprockets. The hydraulic system has a pump with fluid flow rate of 20 gpm (76 lpm) or 38 gpm (144 lpm). The hydraulic pressure is 3300 psi (227 bar). The track loader has a rated operating capacity of 2660 lbs (1205 kg) and tipping load of 7600 lbs (3445 kg). The lift height is 125 inches (3175 mm) to hinge pin.

Refill Capacities

Engine Oil Capacity, gal (L) ...................... 2.1 (8.0)
Engine Coolant Capacity, gal (L) ...................... 3.15 (12.0)
Hydraulic Tank Fluid Capacity, gal (L) ...................... 20.0 (76.0)
Fuel Tank Capacity, gal (L) ...................... 26.0 (98.0)

Recommended Oil and Fluid

Engine Oil Type ...................... Multi-Grade 10W-30, 15W-40. API Service Category CH-4
Engine Coolant Type ...................... Ethylene Glycol (long life)
Hydraulic Fluid Type ...................... All Season MV
Undercarriage Grease ...................... Undercarriage Wheel Bearing Lube

Service Intervals

Lubricate Cylinder Pivot Points ...................... Every 50 Hours
Check Hydraulic Fluid Level ...................... Every 50 Hours
Check Tracks Tension ...................... Every 50 Hours
Check Track Sprocket Bolts Torque ...................... Every 50 Hours
Check Battery Connections ...................... Every 100 Hours
Clean Primary Air Filter ...................... Every 250 Hours
Check Fan Belt Tension ...................... Every 250 Hours
Replace Hydraulic Filter Element ...................... Every 250 Hours
Change Engine Oil ...................... Every 250 Hours
Replace Engine Oil Filter ...................... Every 250 Hours
Replace Fuel Filter Element ...................... Every 500 Hours
Change Hydraulic System Fluid ...................... Every 500 Hours
Replace Primary Air Filter ...................... Every 1000 Hours
Replace Secondary Air Filter ...................... Every 1000 Hours
Change Engine Coolant ...................... Every 2000 Hours

Replacement Parts

Engine Oil Filter. Part Number ...................... 0201-859
Engine Fuel Filter. Part Number ...................... 0201-857
Fuel Water Separator. Part Number ...................... 0201-858
Primary Engine Air Filter. Part Number ...................... 0201-510
Secondary Engine Air Filter. Part Number ...................... 0201-533
High Flow Hydraulic Oil Filter. Part Number ...................... 0307-921
Case Drain Oil FIlter. Part Number ...................... 0302-853
Fan Drive Belt. Part Number ...................... 0200-363
