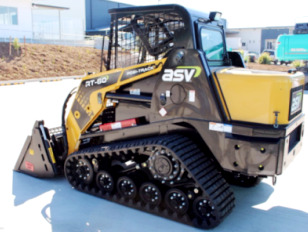

ASV RT-60 Track Loader Specifications

The ASV Posi-Track RT-60 compact track loader driveline system components: a 135 cu.in (2.2L) Perkins 404D-22T 4-cylinder turbocharged diesel engine with a rated power of 60 hp (44.7 kW), and 2-speed hydro transmission. The hydraulic system has a pump with a rated flow of 17.4 gpm (66 lpm). The system pressure is 3000 psi (207 bar). The ASV RT60 is equipped with axial-piston drive pumps, suspended undercarriage, and 15" (380 mm) rubber tracks. The loader has a max lift height of 115.5" (2920 mm) to hinge pin and dump height of 91" (2310 mm). The rated operating capacity is 1900 lbs (860 kg), and tipping load is 5430 lbs (2463 kg).

Engine Specs

Engine Model ...................... Perkins 404D-22T
Engine Type ...................... Vertical 4-cycle turbocharged diesel
Number of Cylinders ...................... 4, in-line
Displacement, cu.in (L) ...................... 135 (2.2)
Cylinder Bore, in (mm) ...................... 3.31 (84.0)
Piston Stroke, in (mm) ...................... 3.94 (100.0)
Aspiration ...................... Turbocharged
Rated Engine Power, hp (kW) ...................... 60.0 (44.7)
Rated Engine Speed, rpm ...................... 2800
Maximum Torque, Nm (lb-ft) ...................... 190 (140)
Torque Speed, rpm ...................... 1800
Compression Ratio ...................... 23.3:1
Firing Order ...................... 1-3-4-2
Fuel System ...................... Indirect injection
Type of Injection ...................... Pintle nozzle
Fuel Injection Pump ...................... Cassette type
Lubricating System ...................... Forced lubrication by gear pump
Cooling System ...................... Engine-driven fan and radiator
Air Cleaner Type ...................... Dual stage
Fuel Tank Capacity, gal (L) ...................... 13.7 (52.0)
Oil Capacity, qts (L) ...................... 11.2 (10.6)
Coolant Capacity, qts (L) ...................... 8.0 (7.5)
Electrical System Rating, Volts ...................... 12
Charging System ...................... Alternator
Alternator Rating, Amps ...................... 65

Drive Train

Drive System Type ...................... Hydrostatic direct drive
Number of Gears ...................... 2 (low/high)
Pump Type ...................... Axial-piston
Brakes Type ...................... Hydraulic wet disc
Forward Speed (Low), mph (kph) ...................... 6.1 (10.0)
Forward Speed (High), mph (kph) ...................... 11.0 (17.7)
Reverse Speed (Low), mph (kph) ...................... 6.1 (10.0)
Reverse Speed (High), mph (kph) ...................... 11.0 (17.7)

Undercarriage

Tracks Type ...................... Rubber with embedded co-polymer cords and all-purpose treads
Ground Pressure, psi (Bar) ...................... 3.9 (0.269)
Track Width, in (mm) ...................... 15 (380)
Track Drive Sprockets ...................... Elevated with low-friction replaceable sprockets
Track Rollers (per Side) ...................... 12 high-density polyurethane and rubber rollers
Track Rollers Diameter (Front and Rear), in (mm) ...................... 14 (360)
Track Rollers Diameter (Middle), in (mm) ...................... 10 (255)
Undercarriage Suspension ...................... Two independent torsion axles

Hydraulic System

Hydraulic System Type ...................... Open center
Hydraulic Pump Type ...................... Gear
Pump Flow, gpm (Lpm) ...................... 17.4 (66.0)
System Pressure, Bar (psi) ...................... 207 (3000)
Hydraulic Tank Capacity, gal (L) ...................... 8.0 (30.5)
Number of Valves ...................... 3

Loader Performance

Rated Operating Capacity (35% tipping load), lbs (kg) ...................... 1900 (860)
Rated Operating Capacity (50% tipping load), lbs (kg) ...................... 2715 (1230)
Tipping Load, lbs (kg) ...................... 5430 (2463)
Loader Boom Type ...................... Radial-lift

Dimensions and Weight

Length (Track On Ground), in (mm) ...................... 59 (1500)
Length (w/o Bucket), in (mm) ...................... 100 (2540)
Length (Bucket On Ground), in (mm) ...................... 128 (3250)
Height (Operator Cab), in (mm) ...................... 77 (1955)
Width (w/o Bucket), in (mm) ...................... 66 (1675)
Height to Hinge Pin (Fully Raised), in (mm) ...................... 115.5 (2920)
Dump Angle At Max Height, deg ...................... 31.5
Dump Height (Fully Raised), in (mm) ...................... 91 (2310)
Dump Reach At Max Height, in (mm) ...................... 25 (635)
Rollback Angle At Ground Level, deg ...................... 20
Departure Angle, deg ...................... 42
Bucket Width, in (mm) ...................... 67 (1700)
Ground Clearance, in (mm) ...................... 12 (305)
Shipping Weight, lbs (kg) ...................... 6277 (2845)
Operating Weight, lbs (kg) ...................... 6930 (3145)
