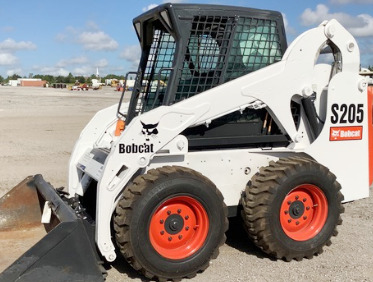

Bobcat S205 Skid Steer Specifications

The Bobcat S205 skid steer loader is powered by Kubota V2403 diesel engine with a rated power of 61 hp (45.5 kW) or Kubota V2607 diesel engine with a rated power of 66 hp (49.2 kW). The Bobcat S205 is equipped with a single-speed or two-speed hydrostatic transmission, vertical-lift loader boom, 80 HSOC roller chains, and 10x16.5 tires. The hydraulic system has a pump with fluid flow rate of 16.3 gpm (62 lpm). The hydraulic pressure is 3350 psi (231 bar). The skid steer loader has a rated operating capacity of 2050 lbs (930 kg) and tipping load of 4100 lbs (1865 kg). The lift height is 118.2 inches (3000 mm) to hinge pin, and dump height is 91 inches (2310 mm).

Kubota V2403 Engine Specs

Engine Model ...................... Kubota V2403-M-DI-TE2B
Engine Type ...................... 4-cycle vertical direct injection diesel
Number of Cylinders ...................... 4
Total Displacement, cu in (L) ...................... 148.5 (2.43)
Cylinder Bore, in (mm) ...................... 3.43 (87.0)
Piston Stroke, in (mm) ...................... 4.03 (102.4)
Aspiration ...................... Turbocharged
Rated Engine Power, hp (kW) ...................... 61.0 (45.5)
Rated Engine Speed, rpm ...................... 2700
Low Idle Speed, rpm ...................... 1195-1245
High Idle Speed, rpm ...................... 2860-3000
Maximum Torque, Nm (lb-ft) ...................... 218 (162)
Torque Speed, rpm ...................... 1600
Compression Ratio ...................... 23.8:1
Firing Order ...................... 1-3-4-2
Fuel System ...................... Common rail direct injection
Fuel System Control ...................... Electronic
Lubricating system ...................... Forced lubrication by pump
Cooling system ...................... Forced circulation with water pump
Air Cleaner Type ...................... Cartridge, dry element
Emission Level ...................... Tier 4 Final
Fuel Tank Capacity, gal (L) ...................... 24.0 (90.8)
Oil Capacity, qts (L) ...................... 9.2 (8.7)
Coolant Capacity, qts (L) ...................... 12.0 (11.3)
Electrical System Rating, Volts ...................... 12
Charging System ...................... Alternator
Alternator Rating, Amps ...................... 90

Kubota V2607 Engine Specs

Engine Model ...................... Kubota V2607-DI-TE-3B
Engine Type ...................... Vertical 4-cylinder liquid-cooled diesel
Number of Cylinders ...................... Four
Displacement, cu.in (L) ...................... 158.7 (2.59)
Cylinder Bore, in (mm) ...................... 3.43 (87.0)
Piston Stroke, in (mm) ...................... 4.33 (110.0)
Aspiration ...................... Turbocharged
Rated Engine Power, hp (kW) ...................... 66.0 (49.2)
Rated Engine Speed, rpm ...................... 2700
Maximum Torque, Nm (lb-ft) ...................... 218 (162)
Torque Speed, rpm ...................... 1425
Idle Speed, rpm ...................... 1175-2900
Compression Ratio ...................... 19:1
Firing Order ...................... 1-3-4-2
Fuel System ...................... Direct injection
Lubricating System ...................... Pressure lubrication by gear pump
Fuel Tank Capacity, gal (L) ...................... 24.0 (90.8)
Oil Capacity, qts (L) ...................... 10.3 (9.7)
Coolant Capacity, qts (L) ...................... 14.5 (13.7)
Electrical System Rating, Volts ...................... 12
Charging System ...................... Alternator
Alternator Rating, Amps ...................... 90

Drive Train

Drive System Type ...................... Hydrostatic transmission, 4-wheel drive
Number of Gears (Std) ...................... Single
Number of Gears (Opt) ...................... Two (low-high)
Drive Pump Type ...................... Tandem, hydrostatic piston
Chain Drive Type ...................... 80 HSOC continuous roller chain
Brakes Type ...................... Independent wet disc
Tire Size (Std) ...................... 10x16.5
Tire Size (Opt) ...................... 31-12x16.5
Chaincase Capacity, qts (L) ...................... 32.1 (30.3)
Travel Speed (Single), mph (km/h) ...................... 7.1 (11.3)
Travel Speed (Low Range), mph (km/h) ...................... 7.2 (11.5)
Travel Speed (High Range), mph (km/h) ...................... 10.7 (17.1)

Hydraulic System

Hydraulic System Type ...................... Open center
Hydraulic Pump Type ...................... Gear
Pump Capacity (Standard), gpm (Lpm) ...................... 16.3 (62.0)
Pump Capacity (High Flow), gpm (Lpm) ...................... 25.5 (96.5)
System Pressure, Bar (psi) ...................... 231 (3350)
Number of Valves ...................... 3
Hydraulic Cylinders ...................... Double-acting
Lift Cylinder Rod Diameter, in (mm) ...................... 1.5 (38.1)
Lift Cylinder Piston Diameter, in (mm) ...................... 2.5 (63.5)
Lift Cylinder Piston Stroke, in (mm) ...................... 23.7 (601)
Bucket Cylinder Rod Diameter, in (mm) ...................... 1.37 (34.9)
Bucket Cylinder Piston Diameter, in (mm) ...................... 2.75 (69.8)
Bucket Cylinder Piston Stroke, in (mm) ...................... 13.2 (335)
Hydraulic Reservoir Capacity, gal (L) ...................... 4.8 (18.2)
Hydraulic System Capacity, gal (L) ...................... 9.0 (34.1)

Loader Performance

Rated Operating Capacity, lbs (kg) ...................... 2050 (930)
Tipping Load, lbs (kg) ...................... 4100 (1865)
Boom Lifting Force, lbs (kg) ...................... 3800 (1727)
Bucket Breakout Force, lbs (kg) ...................... 3825 (1739)
Loader Boom Type ...................... Vertical-lift

Dimensions and Weight

Wheelbase, in (mm) ...................... 40.5 (1030)
Height (Operator Cab), in (mm) ...................... 76.3 (1940)
Height (Boom Raised), in (mm) ...................... 152.1 (3860)
Length (w/o Bucket), in (mm) ...................... 101.9 (2590)
Length (Bucket On Ground), in (mm) ...................... 130.3 (3310)
Width (w/o Bucket), in (mm) ...................... 66 (1675)
Height to Hinge Pin (Fully Raised), in (mm) ...................... 118.2 (3000)
Dump Angle At Max Height, deg ...................... 42
Dump Height (Fully Raised), in (mm) ...................... 91 (2310)
Dump Reach At Max Height, in (mm) ...................... 29.6 (755)
Rollback Angle At Ground Level, deg ...................... 25
Rollback Angle At Max Height, deg ...................... 95
Departure Angle, deg ...................... 23
Bucket Width, in (mm) ...................... 68 (1725)
Ground Clearance, in (mm) ...................... 7.5 (190)
Turning Radius (w/Bucket), in (mm) ...................... 78.8 (2000)
Shipping Weight, lbs (kg) ...................... 5850 (2660)
Operating Weight, lbs (kg) ...................... 6655 (3025)
