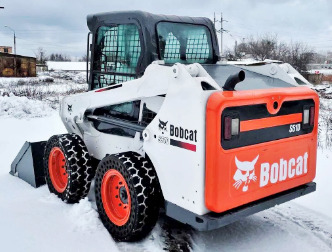

Bobcat S510 Skid Steer Specifications

The Bobcat S510 skid steer loader driveline system components: Kubota V2203 diesel engine with a rated power of 49 hp (36.4 kW) or Kubota V2403 diesel engine with a rated power of 49 hp (36.4 kW), and 1-speed or 2-speed transmission. The hydraulic system has a pump with a rated capacity of 17.1 gal/min (64.7 l/min). The system relief pressure is 3550 psi (245 bar). The Bobcat S510 is equipped with a radial-lift loader boom, 80 HSOC roller chains, and 10x16.5 tires. The skid steer has a max lift height of 114.5" (2910 mm) to hinge pin and dump height of 86.8" (2205 mm). The rated operating capacity is 1650 lbs (748 kg), and tipping load is 3300 lbs (1497 kg).

Kubota V2203 Engine Specs

Engine Model ...................... Kubota V2203 M-DI-E2B
Engine Type ...................... Vertical water-cooled 4-cylinder diesel
Number of Cylinders ...................... Four
Displacement, cu.in (L) ...................... 134.1 (2.2)
Cylinder Bore, in (mm) ...................... 3.43 (87.0)
Piston Stroke, in (mm) ...................... 3.64 (92.4)
Aspiration ...................... Naturally aspirated
Rated Engine Power, hp (kW) ...................... 49.0 (36.4)
Rated Engine Speed, rpm ...................... 2800
Maximum Torque, Nm (lb-ft) ...................... 150 (112)
Torque Speed, rpm ...................... 1700
Idle Speed, rpm ...................... 1075-3000
Compression Ratio ...................... 22.6:1
Firing Order ...................... 1-3-4-2
Fuel System ...................... Direct injection
Lubricating System ...................... Pressure lubrication with filter
Combustion Chamber ...................... Spherical type (E-TVCS)
Fuel Tank Capacity, gal (L) ...................... 24.7 (93.7)
Oil Capacity, qts (L) ...................... 9.2 (8.7)
Coolant Capacity, qts (L) ...................... 12.0 (11.3)
Electrical System Rating, Volts ...................... 12
Charging System ...................... Alternator
Alternator Rating, Amps ...................... 90

Kubota V2403 Engine Specs

Engine Model ...................... Kubota V2403-M-DI-E3B
Engine Type ...................... 4-cycle vertical direct injection diesel
Number of Cylinders ...................... 4
Total Displacement, cu in (L) ...................... 148.5 (2.43)
Cylinder Bore, in (mm) ...................... 3.43 (87.0)
Piston Stroke, in (mm) ...................... 4.03 (102.4)
Aspiration ...................... Naturally aspirated
Rated Engine Power, hp (kW) ...................... 49.0 (36.4)
Rated Engine Speed, rpm ...................... 2700
Low Idle Speed, rpm ...................... 1075-1225
High Idle Speed, rpm ...................... 2760-2900
Maximum Torque, Nm (lb-ft) ...................... 159 (117)
Torque Speed, rpm ...................... 1600
Compression Ratio ...................... 23.8:1
Firing Order ...................... 1-3-4-2
Fuel System ...................... Common rail direct injection
Fuel System Control ...................... Electronic
Lubricating system ...................... Forced lubrication by pump
Cooling system ...................... Forced circulation with water pump
Emission Level ...................... Tier 4 Final
Fuel Tank Capacity, gal (L) ...................... 24.7 (93.7)
Oil Capacity, qts (L) ...................... 9.2 (8.7)
Coolant Capacity, qts (L) ...................... 12.0 (11.3)
Electrical System Rating, Volts ...................... 12
Charging System ...................... Alternator
Alternator Rating, Amps ...................... 90

Drive Train

Drive System Type ...................... Hydrostatic transmission, 4-wheel drive
Number of Gears (Std) ...................... Single
Number of Gears (Opt) ...................... Two (low-high)
Drive Pump Type ...................... Tandem, hydrostatic piston
Chain Drive Type ...................... 80 HSOC continuous roller chain
Brakes Type ...................... Independent wet disc
Tire Size (Std) ...................... 10x16.5
Tire Size (Opt) ...................... 31-12x16.5
Chaincase Capacity, qts (L) ...................... 34.1 (32.2)
Travel Speed (Single), mph (km/h) ...................... 7.4 (11.8)
Travel Speed (Low Range), mph (km/h) ...................... 7.4 (11.8)
Travel Speed (High Range), mph (km/h) ...................... 11.0 (17.6)

Hydraulic System

Hydraulic System Type ...................... Open center
Hydraulic Pump Type ...................... Gear
Pump Capacity, gpm (Lpm) ...................... 17.1 (64.7)
System Pressure, Bar (psi) ...................... 245 (3550)
Number of Valves ...................... 3
Hydraulic Cylinders ...................... Double-acting
Lift Cylinder Rod Diameter, in (mm) ...................... 1.5 (38.1)
Lift Cylinder Piston Diameter, in (mm) ...................... 2.25 (57.2)
Lift Cylinder Piston Stroke, in (mm) ...................... 27.5 (699)
Bucket Cylinder Rod Diameter, in (mm) ...................... 1.5 (38.1)
Bucket Cylinder Piston Diameter, in (mm) ...................... 2.75 (69.8)
Bucket Cylinder Piston Stroke, in (mm) ...................... 13.1 (330)
Hydraulic Reservoir Capacity, gal (L) ...................... 2.0 (7.6)
Hydraulic System Capacity, gal (L) ...................... 8.4 (31.8)

Loader Performance

Rated Operating Capacity, lbs (kg) ...................... 1650 (748)
Tipping Load, lbs (kg) ...................... 3300 (1497)
Boom Lifting Force, lbs (kg) ...................... 3242 (1470)
Bucket Breakout Force, lbs (kg) ...................... 3276 (1485)
Loader Boom Type ...................... Radial-lift

Dimensions and Weight

Wheelbase, in (mm) ...................... 42.6 (1080)
Height (Operator Cab), in (mm) ...................... 77.8 (1970)
Height (Boom Raised), in (mm) ...................... 149.1 (3785)
Length (w/o Bucket), in (mm) ...................... 104.6 (2655)
Length (Bucket On Ground), in (mm) ...................... 133 (3380)
Width (w/o Bucket), in (mm) ...................... 64.7 (1645)
Height to Hinge Pin (Fully Raised), in (mm) ...................... 114.5 (2910)
Dump Angle At Max Height, deg ...................... 42
Dump Height (Fully Raised), in (mm) ...................... 86.8 (2205)
Dump Reach At Max Height, in (mm) ...................... 17 (432)
Rollback Angle At Ground Level, deg ...................... 30
Rollback Angle At Max Height, deg ...................... 97
Departure Angle, deg ...................... 24
Bucket Width, in (mm) ...................... 68 (1725)
Ground Clearance, in (mm) ...................... 7.3 (185)
Turning Radius (w/Bucket), in (mm) ...................... 80 (2030)
Shipping Weight, lbs (kg) ...................... 5160 (2345)
Operating Weight, lbs (kg) ...................... 5905 (2685)
