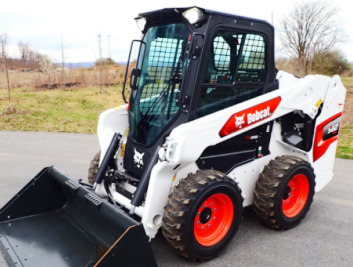

Bobcat S62 Skid Steer Specifications

The Bobcat S62 skid steer loader driveline system components: a 146.5 cu.in (2.4L) Bobcat Doosan D24 4-cylinder turbocharged diesel engine with a rated power of 68 hp (50.7 kW), and 1-speed or 2-speed hydro transmission. The hydraulic system has a pump with a rated capacity of 17.6 gal/min (66.5 l/min). The system relief pressure is 3500 psi (241 bar). The Bobcat S62 is equipped with radial-lift loader boom, 80 HSOC roller chains, and 10x16.5 or 31-12x16.5 tires. The skid steer has a boom lifting force of 4186 lbs (1900 kg) and bucket breakout force of 5093 lbs (2310 kg). The rated operating capacity is 2100 lbs (953 kg), and tipping load is 4200 lbs (1906 kg).

Engine Specs

Engine Model ...................... Bobcat Doosan D24
Engine Type ...................... Vertical four-cylinder direct injection liquid-cooled diesel
Number of Cylinders ...................... 4
Displacement, cu.in (L) ...................... 146.5 (2.39)
Cylinder Bore, in (mm) ...................... 3.54 (90.0)
Piston Stroke, in (mm) ...................... 3.70 (94.0)
Aspiration ...................... Turbocharged
Rated Engine Power, hp (kW) ...................... 68.0 (50.7)
Rated Engine Speed, rpm ...................... 2600
Maximum Torque, Nm (lb-ft) ...................... 252 (186)
Torque Speed, rpm ...................... 1800
Compression Ratio ...................... 17:1
Firing Order ...................... 1-3-4-2
Fuel System ...................... High-pressure common rail
Injection Pump ...................... Delphi DFP 4.4
Fuel Filter Type ...................... Full flow, cartridge
Lubricating System ...................... Pressure lubrication by gear pump
Oil Filter Type ...................... Full flow, cartridge
Fuel Tank Capacity, gal (L) ...................... 28.3 (107.1)
Oil Capacity, qts (L) ...................... 9.7 (9.2)
Coolant Capacity, qts (L) ...................... 12.0 (11.3)
Electrical System Rating, Volts ...................... 12
Charging System ...................... Alternator
Alternator Rating, Amps ...................... 90

Drive Train

Drive System Type ...................... Fully hydrostatic, 4-wheel drive
Number of Gears (Std) ...................... Single
Number of Gears (Opt) ...................... Two (low-high)
Drive Pump Type ...................... Tandem, hydrostatic piston
Chain Drive Type ...................... 80 HSOC continuous roller chain
Brakes Type ...................... Independent wet disc
Tire Size (Std) ...................... 10x16.5
Tire Size (Opt) ...................... 31-12x16.5
Chaincase Capacity, qts (L) ...................... 34.1 (32.2)
Travel Speed (Single), mph (km/h) ...................... 7.4 (11.8)
Travel Speed (Low Range), mph (km/h) ...................... 7.4 (11.8)
Travel Speed (High Range), mph (km/h) ...................... 11.0 (17.7)

Hydraulic System

Hydraulic System Type ...................... Open center
Hydraulic Pump Type ...................... Gear
Pump Capacity (Standard), gpm (Lpm) ...................... 17.6 (66.5)
Pump Capacity (High Flow), gpm (Lpm) ...................... 26.9 (101.8)
System Pressure, psi (Bar) ...................... 3500 (241)
Hydraulic Reservoir Capacity, gal (L) ...................... 5.0 (18.9)
Hydraulic System Capacity, gal (L) ...................... 9.5 (36.0)
Number of Valves ...................... 3

Loader Performance

Rated Operating Capacity, lbs (kg) ...................... 2100 (953)
Tipping Load, lbs (kg) ...................... 4200 (1906)
Boom Lifting Force, lbs (kg) ...................... 4186 (1900)
Bucket Breakout Force, lbs (kg) ...................... 5093 (2310)
Loader Boom Type ...................... Radial-lift

Dimensions and Weight

Wheelbase, in (mm) ...................... 44.6 (1135)
Height (Operator Cab), in (mm) ...................... 80.5 (2045)
Height (Boom Raised), in (mm) ...................... 148.5 (3770)
Length (w/o Bucket), in (mm) ...................... 107 (2720)
Length (Bucket On Ground), in (mm) ...................... 134.9 (3425)
Width (w/o Bucket), in (mm) ...................... 64.6 (1640)
Height to Hinge Pin (Fully Raised), in (mm) ...................... 114.5 (2910)
Dump Angle At Max Height, deg ...................... 37
Dump Height (Fully Raised), in (mm) ...................... 89 (2260)
Dump Reach At Max Height, in (mm) ...................... 20.4 (520)
Rollback Angle At Ground Level, deg ...................... 31
Departure Angle, deg ...................... 25
Bucket Width, in (mm) ...................... 68 (1725)
Ground Clearance, in (mm) ...................... 7.5 (190)
Turning Radius (w/Bucket), in (mm) ...................... 79.8 (2025)
Shipping Weight, lbs (kg) ...................... 6425 (2920)
Operating Weight, lbs (kg) ...................... 6885 (3125)
