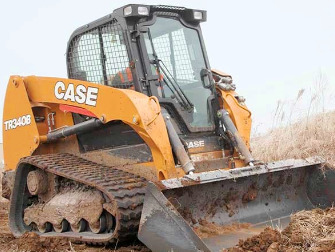

Case TR340B Track Loader Specifications

The Case TR340B compact track loader is powered by 207 cu.in (3.4L) FPT F5B FL413E vertical four-cylinder turbocharged diesel engine with a rated power of 90 hp (67 kW) at 2500 rpm. The Case TR340B is equipped with a radial-lift loader boom, two-speed hydro transmission, planetary gearbox, and 17.7" (450 mm) rubber tracks with steel inserts. The hydraulic system has a pump with fluid flow rate of 24.2 gpm (91.5 lpm). The hydraulic pressure is 3050 psi (210 bar). The track loader has a rated operating capacity of 2380 lbs (1080 kg) and tipping load of 6800 lbs (3084 kg). The boom lifting force is 7760 lbs (3525 kg), and bucket breakout force is 8700 lbs (3955 kg).

Engine Specs

Engine Model .................. FPT F5B FL413E
Engine Type .................. 4-cycle liquid-cooled diesel
Number of Cylinders .................. 4
Displacement, cu.in (L) .................. 207 (3.39)
Cylinder Bore, in (mm) .................. 3.89 (99.0)
Piston Stroke, in (mm) .................. 4.33 (110.0)
Aspiration .................. Turbocharged
Rated Engine Power, hp (kW) .................. 90.0 (67.0)
Rated Engine Speed, rpm .................. 2500
Maximum Torque, Nm (lb-ft) .................. 383 (282)
Torque Speed, rpm .................. 1400
Fast Idle Speed, rpm .................. 2475-2525
Low Idle Speed, rpm .................. 1175-1125
Compression Ratio .................. 17:1
Firing Order .................. 1-3-4-2
Fuel System .................. Direct injection
Fuel Filter Type .................. In-line strainer
Oil Filter Type .................. Spin-on, full-flow
Cooling System .................. Liquid
Water Pump Type .................. Centrifugal
Oil Pump Type .................. Rotor
Emission Level .................. Tier 4 interim, stage 4B
Fuel Tank Capacity, gal (L) .................. 25.5 (96.5)
Oil Capacity, qts (L) .................. 9.0 (8.5)
Coolant Capacity, qts (L) .................. 20.1 (19.0)
Electrical System Rating, Volts .................. 12
Charging System .................. Alternator
Alternator Rating, Amps .................. 160

Drive Train

Drive System Type .................. Hydrostatic, 4-wheel drive
Number of Gears .................. 2 (low/high)
Final Drive Type .................. Planetary gearbox with 2-speed motor
Brakes Type .................. Hydraulic wet disc
Forward Speed (Low), mph (kph) .................. 5.1 (8.2)
Forward Speed (High), mph (kph) .................. 8.0 (12.9)
Reverse Speed (Low), mph (kph) .................. 5.1 (8.2)
Reverse Speed (High), mph (kph) ..................8.0 (12.9)

Undercarriage

Tracks Type .................. Rubber with steel inserts
Track Adjustments .................. Hydraulic
Track Width, in (mm) .................. 17.7 (450)
Ground Pressure, psi (Bar) .................. 4.4 (0.303)
Track Rollers (per side) .................. 4, triple flange

Hydraulic System

Hydraulic System Type .................. Open center
Hydraulic Pump Type .................. Gear
Pump Flow (Standard), gpm (Lpm) .................. 24.2 (91.5)
Pump Flow (High Flow), gpm (Lpm) .................. 37.6 (142.5)
Pump Flow (Enhanced High Flow), gpm (Lpm) .................. 35.0 (132.5)
System Pressure, Bar (psi) .................. 210 (3050)
Hydraulic Reservoir Capacity, gal (L) .................. 6.0 (22.7)
Hydraulic System Capacity, gal (L) .................. 11.9 (45.4)
Number of Valves .................. 3

Loader Performance

Rated Operating Capacity (35% tipping load), lbs (kg) .................. 2380 (1080)
Rated Operating Capacity (50% tipping load), lbs (kg) .................. 3400 (1542)
Tipping Load, lbs (kg) .................. 6800 (3084)
Boom Lifting Force, lbs (kg) .................. 7760 (3525)
Bucket Breakout Force, lbs (kg) .................. 8700 (3955)
Loader Boom Type .................. Radial-lift

Dimensions and Weight

Length (Track On Ground), in (mm) .................. 64.5 (1640)
Length (w/o Bucket), in (mm) .................. 118.2 (3000)
Length (Bucket On Ground), in (mm) .................. 142.6 (3620)
Width (w/o Bucket), in (mm) .................. 58.6 (1490)
Height (Operator Cab), in (mm) .................. 80.4 (2040)
Height (Boom Raised), in (mm) .................. 157.2 (3995)
Height to Hinge Pin (Fully Raised), in (mm) .................. 126.6 (3220)
Dump Angle At Max Height, deg .................. 38
Dump Height (Fully Raised), in (mm) .................. 102.2 (2595)
Dump Reach At Max Height, in (mm) .................. 24.7 (630)
Rollback Angle At Max Height, deg .................. 30.6
Rollback Angle At Ground Level, deg .................. 100
Departure Angle, deg .................. 32
Bucket Width, in (mm) .................. 78 (1980)
Ground Clearance, in (mm) .................. 9.5 (240)
Shipping Weight, lbs (kg) .................. 9655 (4380)
Operating Weight, lbs (kg) .................. 10000 (4535)
