Case TV380 Track Loader Maintenance Data

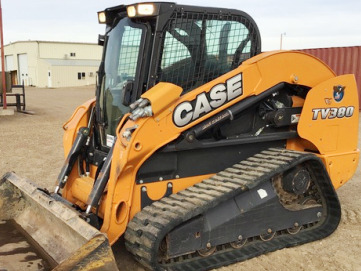

The Case TV380 compact track loader driveline system components: a 195 cu.in (3.2L) FPT F5C E5454 4-cylinder direct injection turbocharged diesel engine with a rated power of 90 hp (67 kW), and 2-speed hydro transmission. The hydraulic system has a pump with a rated flow of 22.5 gpm (85 lpm). The system pressure is 3000 psi (207 bar). The Case TV380 is equipped with a vertical-lift boom, planetary reduction, and 17.7" (450 mm) rubber tracks with steel inserts. The loader has a boom lifting force of 6020 lbs (2735 kg) and bucket breakout force of 7510 lbs (3415 kg). The rated operating capacity is 2660 lbs (1210 kg), and tipping load is 7600 lbs (3445 kg).

Refill Capacities

Engine Oil Capacity, gal (L) .................. 2.5 (9.5)
Engine Coolant Capacity, gal (L) .................. 3.0 (11.4)
Hydraulic Reservoir Capacity, gal (L) .................. 6.0 (22.7)
Hydraulic System Capacity, gal (L) .................. 11.7 (44.5)
Final Drive Gearbox Capacity, qts (L) .................. 1.4 (1.3)
Fuel Tank Capacity, gal (L) .................. 25.5 (96.5)

Recommended Oil and Fluid

Engine Oil Type .................. SAE 15W-40. API Service Category CH or higher
Engine Coolant Type .................. Extended-Life Coolant/Antifreeze
Hydraulic Fluid Type .................. Hy-Tran Premium Hydraulic Transmission Oil
Final Drive Gearbox Oil Type .................. Gearlube GL-3/GL-5, SAE 85W-140

Service Intervals

Lubricate Cylinder Pivot Points .................. Every 50 Hours
Check Hydraulic Fluid Level .................. Every 50 Hours
Check Tracks Tension .................. Every 50 Hours
Check Track Sprocket Bolts Torque .................. Every 50 Hours
Check Battery Connections .................. Every 100 Hours
Check Alternator/Fan Belt Tension .................. Every 100 Hours
Clean Primary Air Filter .................. Every 250 Hours
Change Engine Oil .................. Every 500 Hours
Replace Engine Oil Filter .................. Every 500 Hours
Replace Fuel Filter Element .................. Every 500 Hours
Replace Hydraulic Filter Element .................. Every 500 Hours
Change Final Drive Oil .................. Every 500 Hours
Change Hydraulic System Fluid .................. Every 1000 Hours
Replace Primary Air Filter .................. Every 1000 Hours
Replace Secondary Air Filter .................. Every 1000 Hours
Change Engine Coolant .................. Every 2000 Hours

Replacement Parts

Engine Oil Filter. Part Number .................. 47535939
Engine Fuel Filter. Part Number .................. 84534796
Fuel Water Separator. Part Number .................. 87803443
Primary Engine Air Filter. Part Number .................. 84217229
Secondary Engine Air Filter. Part Number .................. 87682999
Hydraulic Oil Filter Element. Part Number .................. 47456328, 47710533
DEF Filter. Part Number .................. 47633768
Cab Air Filter. Part Number .................. 84376814, 84376815
