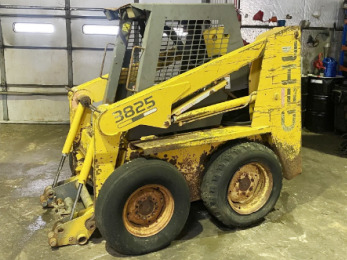

Gehl 3825 Skid Steer Specifications

The Gehl 3825 skid steer loader driveline system components: a 81.5 cu.in (1.3L) Kubota V1305 four-cylinder indirect injection diesel engine with a rated power of 29.3 hp (22 kW), and single-speed hydrostatic transmission. The hydraulic system has a pump with a rated capacity of 10 gal/min (38 l/min). The system relief pressure is 3000 psi (207 bar). The Gehl 3825 is equipped with a radial-lift loader boom, 60HE roller chains, and 10.5x15 or 27-8.5x15 tires. The skid steer loader has a maximum lift height of 107.5" (2730 mm) to hinge pin and dump height of 86.3" (2190 mm). The rated operating capacity is 1000 lbs (455 kg), and tipping load is 2000 lbs (910 kg).

Engine Specs

Engine Model ...................... Kubota V1305
Engine Type ...................... 4-stroke vertical water-cooled diesel
Number of Cylinders ...................... Four
Cylinder Bore, in (mm) ...................... 2.99 (76.0)
Piston Stroke, in (mm) ...................... 2.90 (73.6)
Total Displacement, cu.in (L) ...................... 81.5 (1.34)
Rated Engine Power, hp (kW) ...................... 29.3 (22.0)
Rated Engine Speed, rpm ...................... 2800
Maximum Torque, Nm (lb-ft) ...................... 88 (65)
Torque Speed, rpm ...................... 2000
Aspiration ...................... Naturally aspirated
Combustion Chamber ...................... Spherical type
Direction of Rotation ...................... Counter-clockwise
Compression Ratio ...................... 24:1
Firing Order ...................... 1-3-4-2
Fuel System ...................... Indirect injection
Injection Pump ...................... Bosch MD type mini pump
Injection Nozzle ...................... Mini nozzle
Governor Type ...................... Mechanical
Lubricating System ...................... Forced lubrication by trochoid pump
Oil Filter Type ...................... Full flow cartridge, paper element
Fuel Tank Capacity, gal (L) ...................... 8.5 (32.0)
Oil Capacity, qts (L) ...................... 6.3 (6.0)
Coolant Capacity, qts (L) ...................... 8.0 (7.6)
Electrical System Rating, Volts ...................... 12
Charging System ...................... Alternator
Alternator Rating, Amps ...................... 30

Drive Train

Drive System Type ...................... Hydrostatic, 4-wheel drive
Number of Gears ...................... Single
Chain Drive Type ...................... 60HE roller chain
Tire Size (Std) ...................... 10.5x15
Tire Size (Opt) ...................... 27-8.5x15
Chaincase Capacity, qts (L) ...................... 4.0 (3.8)
Forward Speed, mph (km/h) ...................... 8.0 (12.9)
Reverse Speed, mph (km/h) ...................... 8.0 (12.9)

Hydraulic System

Hydraulic System Type ...................... Open center
Pump Flow, gpm (Lpm) ...................... 10.0 (38.0)
System Pressure, Bar (psi) ...................... 207 (3000)
Hydraulic Reservoir Capacity, gal (L) ...................... 8.0 (30.3)
Number of Valves ...................... 3

Loader Performance

Rated Operating Capacity, lbs (kg) ...................... 1000 (455)
Tipping Load, lbs (kg) ...................... 2000 (910)
Loader Boom Type .................... Radial-lift

Dimensions and Weight

Wheelbase (Nominal), in (mm) ...................... 34 (865)
Height (Operator Cab), in (mm) ...................... 69.6 (1765)
Height (Boom Raised), in (mm) ...................... 134.4 (3415)
Length (w/o Bucket), in (mm) ...................... 82.4 (2095)
Length (Bucket On Ground), in (mm) ...................... 105.8 (2685)
Width (w/o Bucket), in (mm) ...................... 53.8 (1365)
Height to Hinge Pin (Fully Raised), in (mm) ...................... 107.5 (2730)
Dump Angle At Max Height, deg ...................... 37
Dump Height (Fully Raised), in (mm) ...................... 86.3 (2190)
Dump Reach At Max Height, in (mm) ...................... 19.7 (500)
Rollback Angle At Ground Level, deg ...................... 32
Rollback Angle At Max Height, deg ...................... 105
Departure Angle, deg ...................... 28
Grading Angle, deg ...................... 104
Bucket Width, in (mm) ...................... 54 (1390)
Ground Clearance, in (mm) ...................... 9 (230)
Turning Radius (w/Bucket), in (mm) ...................... 63.6 (1615)
Shipping Weight, lbs (kg) ...................... 3370 (1530)
Operating Weight, lbs (kg) ...................... 3700 (1680)
