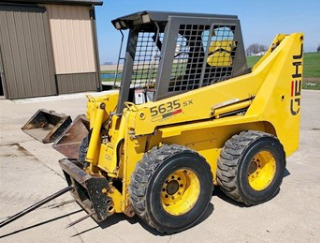

Gehl 5635SX Skid Steer Maintenance Data

The Gehl 5635 SX skid steer loader is powered by 178 cu.in (2.9L) Deutz F4M1011F 4-cycle 4-cylinder direct injection diesel engine with a rated power of 56 hp (41.8 kW) at 2500 rpm. The Gehl 5635SX is equipped with one-speed or two-speed transmission, radial-lift loader boom, 100H roller chains, and 12x16.5 or 33-15.5x16.5 tires. The hydraulic system has a pump with fluid flow rate of 23 gpm (87.1 lpm). The hydraulic pressure is 3000 psi (207 bar). The skid steer loader has a rated operating capacity of 1900 lbs (862 kg) and tipping load of 3800 lbs (1724 kg). The lift height is 122.7 inches (3120 mm) to hinge pin, and dump height is 93.7 inches (2380 mm).

Refill Capacities

Fuel Tank Capacity, gal (L) ...................... 19.0 (72.0)
Engine Oil Capacity, gal (L) ...................... 2.6 (10.0)
Hydraulic Reservoir Fluid Capacity, gal (L) ...................... 16.0 (60.5)
Chain Case Oil Capacity, gal (L) ...................... 2.0 (7.6)

Recommended Oil and Fluid

Engine Oil Type ...................... SAE 10W-30, SAE 15W-40. API Service Category CF-4/CG-4
Hydraulic Fluid Type ...................... Amoco Rycon 46, Mobil DTE 15M or equivalent
Chain Case Oil Type ...................... Mobil DTE 15M or SAE 10W30

Service Intervals

Lubricate Cylinder Pivot Points ...................... Every 50 Hours
Check Hydraulic Fluid Level ...................... Every 50 Hours
Check Chain Case Oil Level ...................... Every 100 Hours
Check Alternator Belt ...................... Every 100 Hours
Check Drive Chain Tension ...................... Every 100 Hours
Check Battery Condition...................... Every 100 Hours
Adjust Parking Brake ...................... Every 200 Hours
Check Radiator Hoses and Clamps ...................... Every 200 Hours
Change Engine Oil ...................... Every 500 Hours
Replace Engine Oil Filter ...................... Every 500 Hours
Replace Hydraulic Oil Filter ...................... Every 500 Hours
Replace Fuel Filter ...................... Every 500 Hours
Replace Primary Engine Air Filter ...................... Every 500 Hours
Replace Secondary Engine Air Filter ...................... Every 500 Hours
Change Hydraulic Fluid ...................... Every 500 Hours
Change Chain Case Oil ...................... Every 500 Hours
Change Engine Coolant ...................... Every 1000 Hours

Replacement Parts

Engine Oil Filter. Part Number ...................... 132023 (Element, Spin-On)
Engine Fuel Filter. Part Number ...................... 132024 (Cartridge, Spin-On)
Primary Engine Air Filter. Part Number ...................... L99453 (Element)
Secondary Engine Air Filter. Part Number ...................... L99967 (Element)
Hydraulic Oil Filter. Part Number ...................... 074830 (Element, Spin-On)
Alternator Belt. Part Number ...................... 132301
