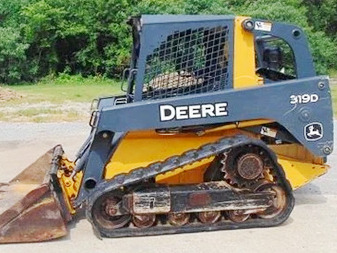

John Deere 319D Track Loader Specifications

The John Deere 319D compact track loader driveline system components: a 149.1 cu.in (2.4L) JD PowerTech E 4024HT 4-cylinder turbocharged diesel engine with a rated power of 63 hp (47 kW), and 1-speed hydro transmission. The hydraulic system has a pump with a rated flow of 15.5 gpm (59 lpm). The system pressure is 3100 psi (214 bar). The John Deere 319D is equipped with vertical-lift loader boom, wet disc brakes, and 12.6" (320 mm) rubber tracks with steel inserts. The loader has a maximum lift height of 118.1" (3000 mm) to hinge pin and dump height of 94.5" (2400 mm). The rated operating capacity is 1900 lbs (863 kg), and tipping load is 5600 lbs (2540 kg).

Engine Specs

Engine Model ...................... John Deere PowerTech E 4024HT
Engine Type ...................... Vertical in-line 4-cycle 4-cylinder turbocharged diesel
Number of Cylinders ...................... Four
Displacement, cu.in (L) ...................... 149.1 (2.44)
Cylinder Bore, in (mm) ...................... 3.39 (86.0)
Piston Stroke, in (mm) ...................... 4.13 (105.0)
Aspiration ...................... Turbocharged and intercooled
Rated Engine Power, hp (kW) ...................... 63.0 (47.0)
Maximum Engine Power, hp (kW) ...................... 68.0 (50.8)
Rated Engine Speed, rpm ...................... 2300
Maximum Torque, Nm (lb-ft) ...................... 230 (170)
Torque Speed, rpm ...................... 2000
Compression Ratio ...................... 18.0:1
Firing Order ...................... 1-3-4-2
Fuel System ...................... Electronic unit pump
Air Cleaner Type ...................... Dry dual element
Cooling Fan Type ...................... Variable-speed hydraulic drive
Emission Level ...................... Interim Tier 4
Engine Control ...................... Electronic
Fuel Tank Capacity, gal (L) ...................... 19.0 (70.0)
Oil Capacity, qts (L) ...................... 9.5 (9.0)
Coolant Capacity, qts (L) ...................... 9.8 (9.3)
Electrical System Rating, Volts ...................... 12
Charging System ...................... Alternator
Alternator Rating, Amps ...................... 70

Drive Train

Drive System Type ...................... Hydrostatic direct drive
Number of Gears ...................... Single
Drive Pump Type ...................... Axial-piston
Drive Motor Type ...................... Axial-piston
Brakes Type ...................... Integral automatic wet disc
Planetary Gearbox Capacity (Each), qts (L) ...................... 0.53 (0.50)
Forward Speed, mph (kph) ...................... 6.1 (9.8)
Reverse Speed, mph (kph) ...................... 6.1 (9.8)

Undercarriage

Tracks Type ...................... Heavy-duty double-steel-reinforced rubber tracks
Track Width, in (mm) ...................... 12.6 (320)
Ground Pressure, psi (Bar) ...................... 5.4 (0.372)
Track Rollers (per Side) ...................... 4 triple-flange rollers
Track Idlers (per Side) ...................... 2 double-flange idlers

Hydraulic System

Hydraulic System Type ...................... Open center
Pump Flow, gpm (Lpm) ...................... 15.5 (59.0)
System Pressure, Bar (psi) ...................... 214 (3100)
Hydraulic Capacity, gal (L) ...................... 5.0 (19.0)
Number of Valves ...................... 3

Loader Performance

Rated Operating Capacity (35% tipping load), lbs (kg) ...................... 1900 (863)
Rated Operating Capacity (50% tipping load), lbs (kg) ...................... 2800 (1270)
Tipping Load, lbs (kg) ...................... 5600 (2540)
Boom Lifting Force, lbs (kg) ...................... 3500 (1590)
Bucket Breakout Force, lbs (kg) ...................... 5125 (2325)
Loader Boom Type ...................... Vertical-lift

Dimensions and Weight

Length (w/o Bucket), in (mm) ...................... 107.8 (2740)
Length (Bucket On Ground), in (mm) ...................... 132.3 (3360)
Height (Operator Cab), in (mm) ...................... 78.7 (2000)
Width (w/o Bucket), in (mm) ...................... 71.6 (1820)
Height to Hinge Pin (Fully Raised), in (mm) ...................... 118.1 (3000)
Dump Angle At Max Height, deg ...................... 42
Dump Height (Fully Raised), in (mm) ...................... 94.5 (2400)
Dump Reach At Max Height, in (mm) ...................... 28.3 (720)
Rollback Angle At Ground Level, deg ...................... 32
Departure Angle, deg ...................... 25
Bucket Width, in (mm) ...................... 72 (1830)
Ground Clearance, in (mm) ...................... 9.8 (250)
Turning Radius (w/Bucket), in (mm) ...................... 79.1 (2010)
Shipping Weight, lbs (kg) ...................... 7770 (3530)
Operating Weight, lbs (kg) ...................... 8550 (3880)
