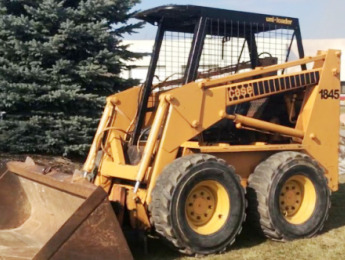

Case 1845 Skid Steer Specifications

The Case 1845 skid steer loader driveline system components: Case 188D 4-cylinder diesel engine with a rated power of 49 hp (36.5 kW) or Case 159G 4-cylinder gasoline engine with a rated power of 49 hp (36.5 kW), and 1-speed hydro transmission. The hydraulic system has a pump with a rated capacity of 16.8 gal/min (63.6 l/min). The system pressure is 2250 psi (155 bar). The Case 1845 is equipped with a reduction final drive, 80HT roller chains, and 7.5x16 or 12x16.5 tires. The loader has a boom lifting force of 3120 lbs (1415 kg) and bucket breakout force of 3250 lbs (1475 kg). The rated operating capacity is 1700 lbs (770 kg), and tipping load is 3120 lbs (1325 kg).

Diesel Engine Specs

Engine Model .................. Case 188D
Engine Type .................. 4-Stroke four-cylinder liquid-cooled diesel
Number of Cylinders .................. 4
Displacement, cu in (L) .................. 188 (3.08)
Engine Bore, in (mm) .................. 3.81 (97.0)
Engine Stroke, in (mm) .................. 4.12 (105.0)
Aspiration .................. Naturally aspirated
Rated Engine Power, hp (kW) .................. 49.0 (36.5)
Rated Engine Speed, rpm .................. 2200
Maximum Torque, Nm (ft-lb) .................. 180 (133)
Torque Speed, rpm.................. 1250
Compression Ratio .................. 17.5:1
Firing Order .................. 1-3-4-2
Fuel System Type .................. Injection pump
Air Cleaner Type .................. Dry element
Fuel Tank Capacity, gal (L) .................. 19.5 (73.8)
Oil Capacity, qts (L) .................. 5.0 (4.7)
Coolant Capacity, qts (L) .................. 8.1 (7.6)
Electrical System Rating, Volts .................. 12
Charging System .................. Alternator
Alternator Rating, Amps .................. 95

Gasoline Engine Specs

Engine Model .................. Case 159G
Engine Type .................. 4-Stroke four-cylinder gasoline
Number of Cylinders .................. 4
Displacement, cu in (L) .................. 159 (2.61)
Engine Bore, in (mm) .................. 3.51 (89.0)
Engine Stroke, in (mm) .................. 4.12 (105.0)
Rated Engine Power, hp (kW) .................. 49.0 (36.5)
Rated Engine Speed, rpm .................. 2200
Maximum Torque, Nm (ft-lb) .................. 180 (133)
Torque Speed, rpm.................. 1250
Firing Order .................. 1-3-4-2
Fuel System Type .................. Carburetor
Air Cleaner Type .................. Dry element
Fuel Tank Capacity, gal (L) .................. 19.5 (73.8)
Oil Capacity, qts (L) .................. 5.0 (4.7)
Coolant Capacity, qts (L) .................. 8.1 (7.6)
Electrical System Rating, Volts .................. 12
Charging System .................. Alternator
Alternator Rating, Amps .................. 55

Drive Train

Drive System Type .................. Hydrostatic
Number of Gears .................. Single
Drive Pump Type .................. Tandem, axial piston
Chain Drive Type .................. 80HT continuous roller chain
Brakes Type .................. Wet disc
Final Drive Type .................. 2-stage reduction chain drive
Tire Size (Std) .................. 7.5x16
Tire Size (Opt) .................. 12x16.5
Forward Speed (Max), mph (kph) .................. 6.2 (10.0)
Reverse Speed (Max), mph (kph) .................. 6.2 (10.0)

Hydraulic System

Hydraulic System Type .................. Open center
Hydraulic Pump Type .................. Gear
Pump Flow, gpm (Lpm) .................. 16.8 (63.6)
System Pressure, Bar (psi) .................. 155 (2250)
Hydraulic System Capacity, gal (L) .................. 15.5 (58.7)
Number of Valves .................. 2

Loader Performance

Rated Operating Capacity, lbs (kg) .................. 1700 (770)
Tipping Load (Gas), lbs (kg) .................. 2920 (1325)
Tipping Load (Diesel), lbs (kg) .................. 3120 (1415)
Boom Lifting Force, lbs (kg) .................. 3250 (1475)
Bucket Breakout Force, lbs (kg) .................. 4880 (2213)
Loader Boom Type .................. Radial-lift

Dimensions and Weight

Wheelbase, in (mm) .................. 38.8 (985)
Height (Operator Cab), in (mm) .................. 83 (2110)
Height (Boom Raised), in (mm) .................. 139 (3530)
Length (w/o Bucket), in (mm) .................. 97.8 (2485)
Length (Bucket On Ground), in (mm) .................. 127 (3225)
Width (w/o Bucket), in (mm) .................. 54 (1370)
Height to Hinge Pin (Fully Raised), in (mm) .................. 117 (2970)
Dump Angle At Max Height, deg .................. 40
Dump Height (Fully Raised), in (mm) .................. 90 (2285)
Dump Reach At Max Height, in (mm) .................. 22 (560)
Bucket Width, in (mm) .................. 63 (1600)
Ground Clearance, in (mm) .................. 8 (205)
Turning Radius (w/Bucket), in (mm) .................. 76 (1930)
Shipping Weight (Gas), lbs (kg) .................. 5330 (2415)
Shipping Weight (Diesel), lbs (kg) .................. 5470 (2480)
Operating Weight (Gas), lbs (kg) .................. 5825 (2640)
Operating Weight (Diesel), lbs (kg) .................. 5965 (2705)
