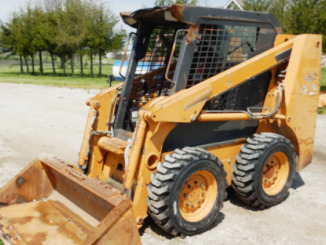

Case 410 Skid Steer Specifications

The Case 410 skid steer loader is powered by 134 cu.in (2.2L) Case 422/M2 4-cylinder indirect injection liquid-cooled diesel engine with a rated power of 51 hp (38 kW) at 2500 rpm. The Case 410 is equipped with a hydrostatic transmission, axial piston drive pumps, 80HS continuous roller chain, and 10x16.5 standard tires. The open center hydraulic system has a gear pump with fluid flow rate of 18 gpm (68.3 lpm). The hydraulic pressure is 3000 psi (207 bar). The skid steer loader has a rated operating capacity of 1500 lbs (680 kg) and tipping load of 3000 lbs (1360 kg). The lift height is 114.6 inches (2910 mm) to hinge pin, and dump height is 89.4 inches (2270 mm).

Engine Specs

Engine Model .................. Case 422/M2
Engine Type .................. 4-Stroke indirect injection liquid-cooled diesel
Number of Cylinders .................. 4
Displacement, cu in (L) .................. 134 (2.20)
Engine Bore, in (mm) .................. 3.31 (84.0)
Engine Stroke, in (mm) .................. 3.93 (100.0)
Aspiration .................. Naturally aspirated
Rated Engine Power, hp (kW) .................. 51.0 (38.0)
Rated Engine Speed, rpm .................. 2900
Maximum Torque, Nm (ft-lb) .................. 149 (110)
Torque Speed, rpm .................. 1700
High Idle Speed, rpm .................. 3050
Low Idle Speed, rpm .................. 1050
Firing Order .................. 1-3-4-2
Fuel System .................. Injection pump
Fuel Filter Type.................... In-line strainer
Governor Type .................. Mechanical
Lubricating System .................. Positive pressure
Oil Filter Type.................... Full-flow cartridge
Cooling System .................. Pressurized
Water Pump Type .................. Centrifugal
Air Cleaner Type .................. Dry element
Fuel Tank Capacity, gal (L) .................. 22.0 (83.3)
Oil Capacity, qts (L) .................. 9.2 (8.7)
Coolant Capacity, qts (L) .................. 18.0 (17.0)
Electrical System Rating, Volts .................. 12
Charging System .................. Alternator
Alternator Rating, Amps .................. 41

Drive Train

Drive System Type .................. Hydrostatic, 4 wheel drive
Number of Gears .................. Single
Drive Pump Type .................. Tandem, axial piston
Chain Drive Type .................. ASA 80HS continuous roller chain
Brakes Type .................. Independent wet disc
Final Drive Type .................. Single-reduction chain drive
Tire Size (Std) .................. 10x16.5
Tire Size (Opt) .................. 13x16.5
Chain Case Oil Capacity (per side), qts (L) .................. 6.0 (5.7)
Forward Speed (Max), mph (kph) .................. 6.8 (11.0)
Reverse Speed (Max), mph (kph) .................. 6.8 (11.0)

Hydraulic System

Hydraulic System Type .................. Open center
Hydraulic Pump Type .................. Gear
Pump Flow, gpm (Lpm) .................. 18.0 (68.3)
System Pressure (Boom), Bar (psi) .................. 230 (3350)
System Pressure (Bucket), Bar (psi) .................. 207 (3000)
Hydraulic Reservoir Capacity, gal (L) .................. 7.1 (27.0)
Hydraulic System Capacity, gal (L) .................. 13.3 (50.2)
Number of Valves .................. 3

Loader Performance

Rated Operating Capacity, lbs (kg) .................. 1500 (680)
Tipping Load, lbs (kg) .................. 3000 (1360)
Boom Lifting Force, lbs (kg) .................. 3455 (1570)
Bucket Breakout Force, lbs (kg) .................. 4130 (1875)
Loader Boom Type .................. Radial-lift

Dimensions and Weight

Wheelbase, in (mm) .................. 41.2 (1050)
Height (Operator Cab), in (mm) .................. 75.5 (1920)
Height (Boom Raised), in (mm) .................. 145.3 (3690)
Length (w/o Bucket), in (mm) .................. 100 (2540)
Length (Bucket On Ground), in (mm) .................. 123.2 (3130)
Width (w/o Bucket), in (mm) .................. 49 (1250)
Height to Hinge Pin (Fully Raised), in (mm) .................. 114.6 (2910)
Dump Angle At Max Height, deg .................. 40
Dump Height (Fully Raised), in (mm) .................. 89.4 (2270)
Dump Reach At Max Height, in (mm) .................. 23.6 (600)
Rollback Angle At Ground Level, deg .................. 32
Rollback Angle At Max Height, deg .................. 80
Departure Angle, deg .................. 27
Bucket Width, in (mm) .................. 60 (1525)
Ground Clearance, in (mm) .................. 8 (205)
Turning Radius (w/Bucket), in (mm) .................. 73.2 (1860)
Shipping Weight, lbs (kg) .................. 4815 (2185)
Operating Weight, lbs (kg) .................. 5480 (2490)
